Precision In-House Die Manufacturing
The extrusion die is the heart of the manufacturing process, shaping aluminum into complex profiles with remarkable precision. Regal Aluminum operates a fully-equipped, in-house die manufacturing facility to ensure total control over the quality, accuracy, and longevity of our tooling. This capability allows us to offer both rapid prototyping for custom designs and immediate access to our vast Die Library.

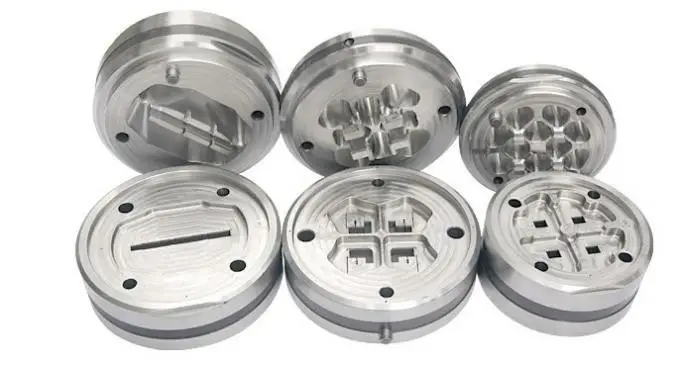

Clients can select from our inventory of over 3000 existing dies to manufacture a wide array of standard and architectural profiles, saving time and cost. For unique projects, our expert team can design, engineer, and manufacture custom dies to meet the most intricate specifications.
From Concept to Precision-Engineered Die
Die Design & Engineering

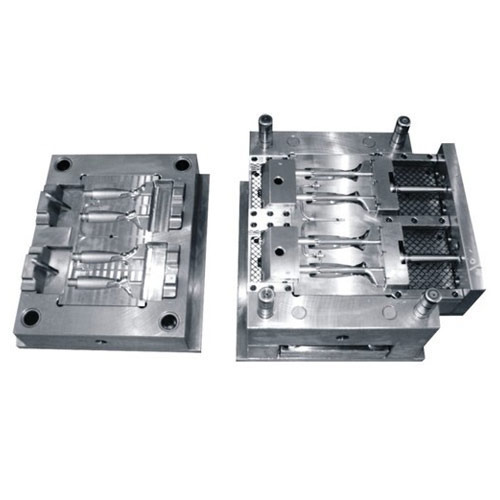

Every die begins as a concept. Using advanced CAD/CAM software, our engineers translate client drawings and specifications into precise digital models, optimizing for material flow and structural integrity.
Premium Steel Selection

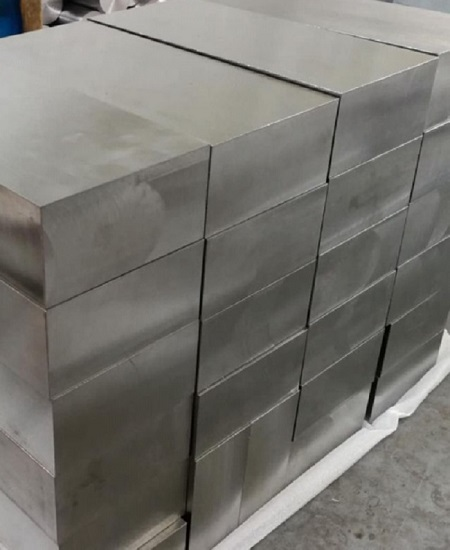

We use high-grade H-13 tool steel, a chromium-molybdenum hot-work alloy renowned for its exceptional strength, thermal shock resistance, and ability to withstand the extreme pressures of extrusion.
CNC & EDM Machining

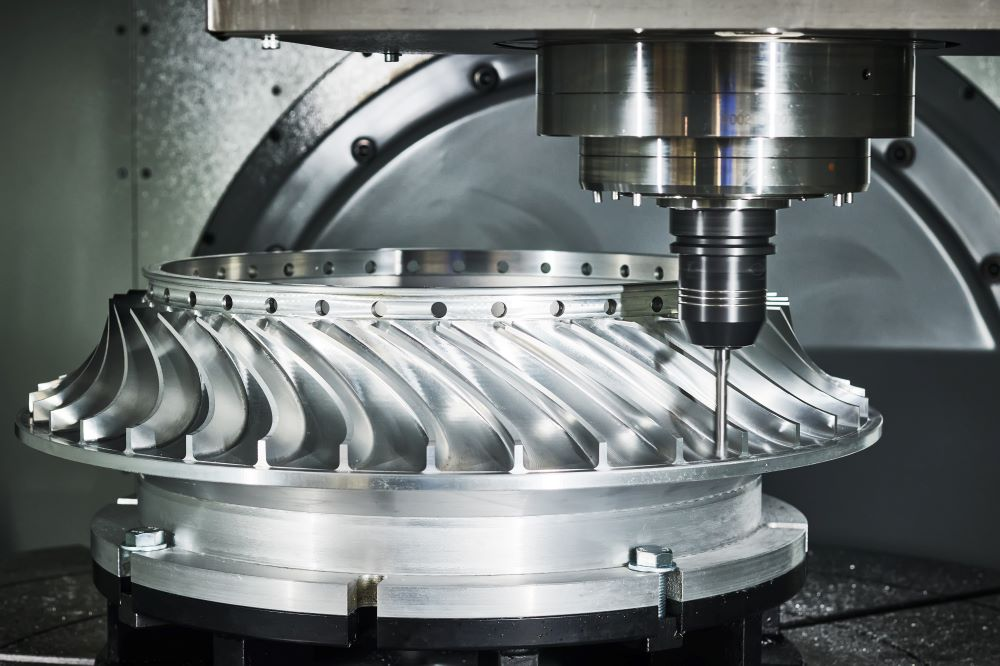

The steel block is precision-machined using computer numerical control (CNC) machines. For complex shapes and the final profile orifice, we employ Electrical Discharge Machining (EDM) for pinpoint accuracy.
Heat Treatment

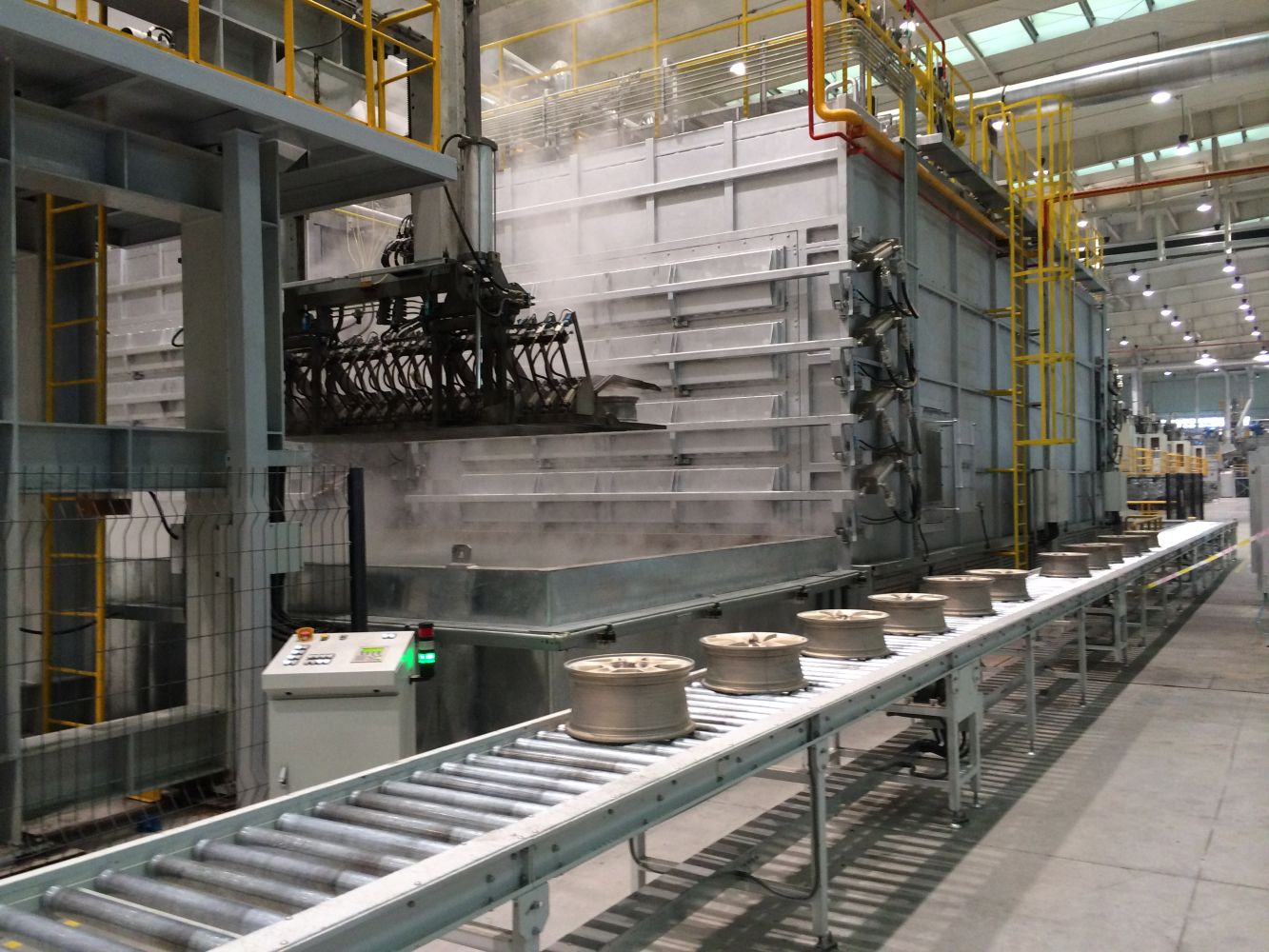

The machined die undergoes multi-stage heat treatment in a vacuum furnace, followed by quenching and tempering to achieve the perfect balance of toughness and wear resistance needed for extrusion.
Metal Nitriding

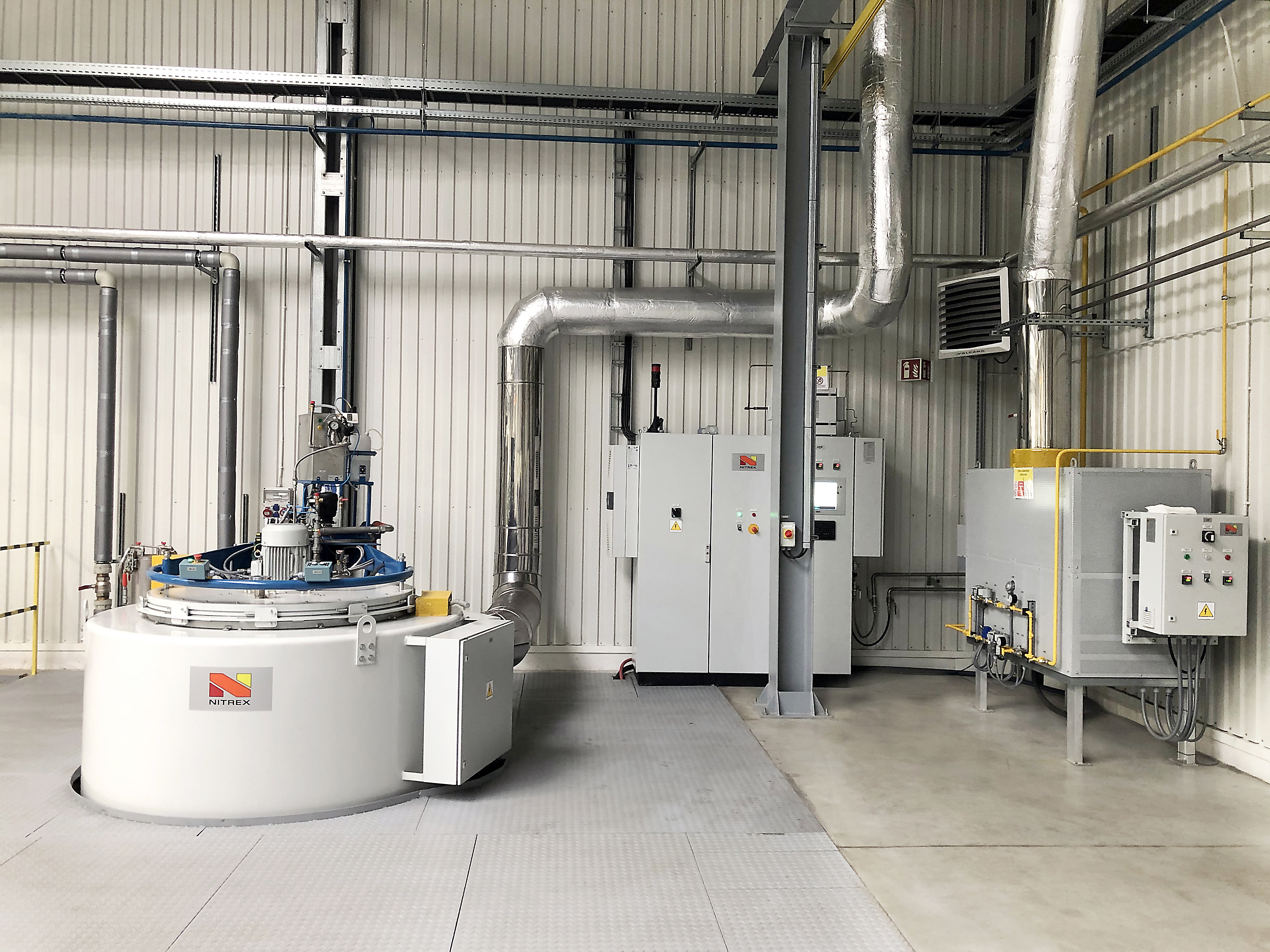

This crucial final treatment diffuses nitrogen into the surface of the die, creating an ultra-hard case. Our in-house nitriding process significantly increases die lifespan and ensures a smoother finish on extruded profiles.
Correction & Trial Run

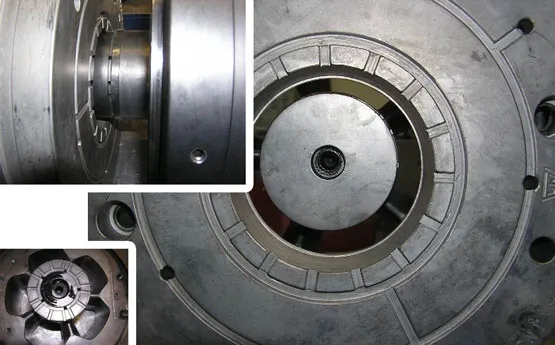

Before approval, each new die is meticulously inspected, polished, and tested on our extrusion press. This trial guarantees the extruded profile meets all dimensional tolerances before mass production.
Our Key Capabilities
Complete In-House Control
From design to final testing, we manage the entire process internally, ensuring superior quality and faster turnaround times.
Extensive Die Library
Gain immediate access to over 3000 existing profiles, significantly reducing lead times and development costs for standard applications.
Advanced Technology
We utilize modern CAD/CAM software, high-precision CNC machines, and EDM technology to create even the most complex die designs accurately.
